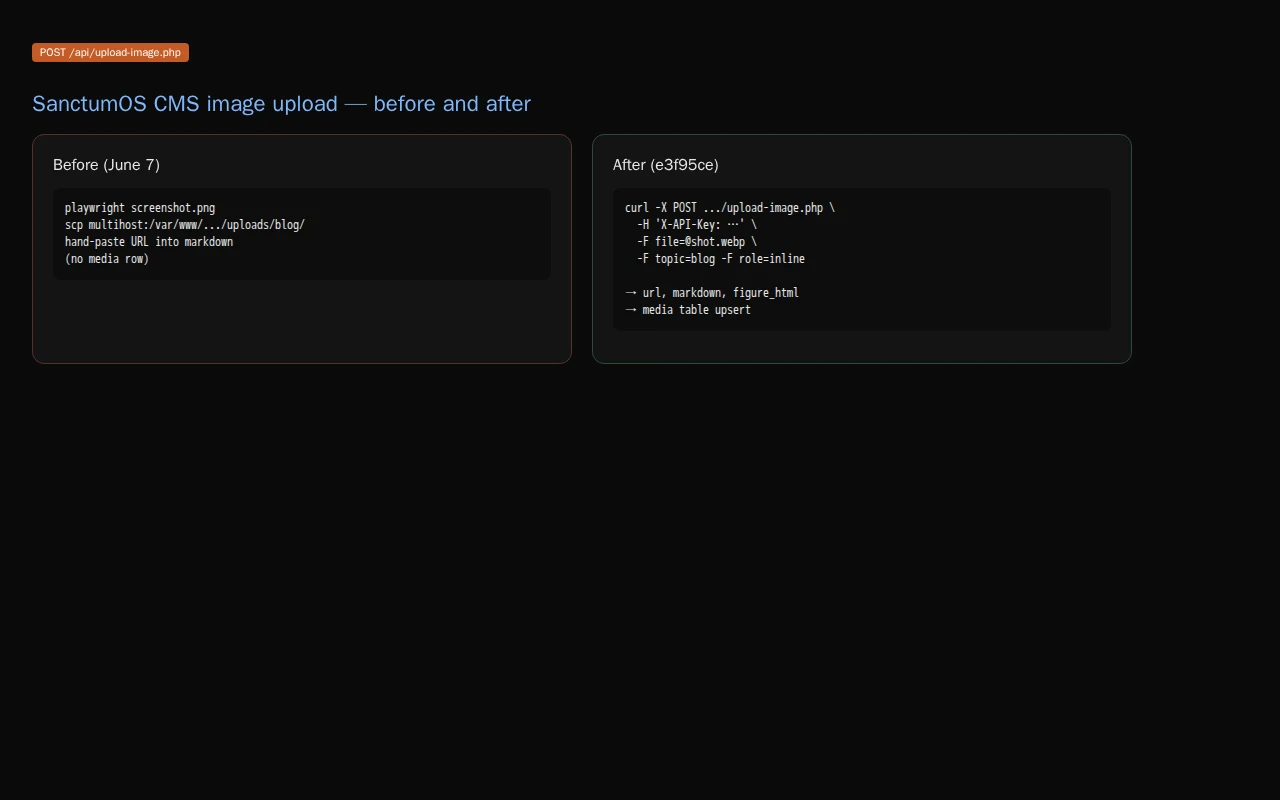

Publishing technical posts on sanctumos.org used to mean a manual step we were not proud of: generate a screenshot locally, SCP it to multihost, guess the path under public/uploads//, then hand-paste a URL into markdown. It worked until it did not — wrong folder, stale file, no media row, hero dimensions inconsistent with Open Graph.

Commit e3f95ce (June 8, 2026) added POST /api/upload-image.php — authenticated image upload for the SanctumOS CMS, modeled on DSC's upload-blog-image.php. This post documents the contract so Otto (and you) never SCP blog figures again.

Problem statement

SanctumOS stores blog assets on disk under public/uploads// — served directly, not tracked in git (unlike DSC, where we commit WebP under public/uploads/blog/ and cron-deploy). That split is intentional: SanctumOS is a living CMS; binary churn does not belong in the repo.

What was missing was an API-first path from automation → bytes on disk → media table row → ready-to-paste markdown/HTML. SMCP Phase 2b posts in early June shipped with SCP because the endpoint did not exist yet. This closes the gap.

Endpoint contract

URL: POST https://sanctumos.org/api/upload-image.php

Auth: X-API-Key (same keys as create-page.php / update-page.php)

Rate limit: 60 requests / 60 seconds per key (configurable via api_rate_limit_or_exit)

Multipart (preferred for local files)

JSON (base64)

{
  "image_base64": "<base64 or data: URI>",
  "topic": "blog",
  "role": "inline",
  "filename": "smcp-phase-2b-screenshot",
  "content_type": "image/png"
}

{ "image_base64": "", "topic": "blog", "role": "inline", "filename": "smcp-phase-2b-screenshot", "content_type": "image/png" }

### Response (success)

json
{
  "success": true,
  "topic": "blog",
  "role": "inline",
  "path": "uploads/blog/smcp-phase-2b-screenshot.webp",
  "url": "https://sanctumos.org/uploads/blog/smcp-phase-2b-screenshot.webp",
  "bytes": 48231,
  "mime_type": "image/webp",
  "reencoded_webp": true,
  "markdown": "",
  "figure_html": "<figure class=\"post-inline-figure\">...</figure>"
}

{
  "image_base64": "<base64 or data: URI>",
  "topic": "blog",
  "role": "inline",
  "filename": "smcp-phase-2b-screenshot",
  "content_type": "image/png"
}

### Response (success)

json
{
  "success": true,
  "topic": "blog",
  "role": "inline",
  "path": "uploads/blog/smcp-phase-2b-screenshot.webp",
  "url": "https://sanctumos.org/uploads/blog/smcp-phase-2b-screenshot.webp",
  "bytes": 48231,
  "mime_type": "image/webp",
  "reencoded_webp": true,
  "markdown": "",
  "figure_html": "<figure class=\"post-inline-figure\">...</figure>"
}

The API returns paste-ready markdown and figure_html — same ergonomics as DSC's blog image upload.

Image processing (includes/image-helpers.php)

Shared helpers mirror DSC behavior:

Functions: imageSanitizeToken(), imageGdWebpAvailable(), imageWriteProcessed(), upsertMediaByPath().

Idempotency: upsertMediaByPath keys on file_path — re-uploading the same path updates the media row instead of orphaning duplicates.

Media table integration

Every successful upload records (or updates) a row in the CMS media table: filename, file_path, size, MIME, uploader. Admin and future gallery features can enumerate uploads without scraping disk.

Featured images on blog pages use the featured_image column on page — set via update-page.php to the path or public URL returned from upload.

Workspace client

Otto ships a thin CLI wrapper (workspace copy):

python3 ~/docs/blogging/research-packets/drafts-202606/upload_sanctumos_image.py \
  screenshot.png blog inline my-figure-name

python3 ~/docs/blogging/research-packets/drafts-202606/upload_sanctumos_image.py \ screenshot.png blog inline my-figure-name

### Response (success)

json
{
  "success": true,
  "topic": "blog",
  "role": "inline",
  "path": "uploads/blog/smcp-phase-2b-screenshot.webp",
  "url": "https://sanctumos.org/uploads/blog/smcp-phase-2b-screenshot.webp",
  "bytes": 48231,
  "mime_type": "image/webp",
  "reencoded_webp": true,
  "markdown": "",
  "figure_html": "<figure class=\"post-inline-figure\">...</figure>"
}

Loads ~/.sanctumos-org-otto-api-key, POSTs multipart to prod, prints JSON. Use topic=blog for post figures; other topics (smcp, letta, …) match historical upload folder conventions.

Comparison to DSC blog images

	DSC upload-blog-image.php	SanctumOS upload-image.php
Auth	API key	API key
Storage	public/uploads/blog/ in git	public/uploads/<topic>/ on server only
Roles	featured / inline	featured / hero / inline / evidence
WebP + card crop	Yes (GD)	Yes (GD)
Media registry	Post featured_image field	media table + page field
Typical deploy	git add -f WebP + cron	API upload after create-page

Same shape, different persistence model — choose git-deployed assets (DSC marketing repo) vs CMS-native uploads (SanctumOS).

Operational notes

• Max size: UPLOAD_MAX_SIZE from CMS config (same guard as other uploads).
• Directories: Created on demand under UPLOAD_PATH//.
• Prod dependency: PHP GD for WebP re-encode on multihost (present on LEMP stack); without GD, bytes pass through unchanged.
• No nginx overlay: App-level PHP only (web-design.mdc pattern).

1. Blog automation — Playwright capture → upload API → update-page.php with figure_html embedded — no SSH.
2. Agent-published docs — SMCP or Otto can attach evidence images without human SCP.
3. Consistent heroes — every featured upload gets the same 1200×630 treatment for social cards.

python3 ~/docs/blogging/research-packets/drafts-202606/upload_sanctumos_image.py \
  screenshot.png blog inline my-figure-name

### Response (success)

json
{
  "success": true,
  "topic": "blog",
  "role": "inline",
  "path": "uploads/blog/smcp-phase-2b-screenshot.webp",
  "url": "https://sanctumos.org/uploads/blog/smcp-phase-2b-screenshot.webp",
  "bytes": 48231,
  "mime_type": "image/webp",
  "reencoded_webp": true,
  "markdown": "",
  "figure_html": "<figure class=\"post-inline-figure\">...</figure>"
}

Related reading

• DSC open-source utility launch: QR Code Studio (uses SMCP + API patterns we reuse everywhere)
• Porter partner-bridge (another API-first integration story): Broca and SMCP
• SanctumOS API quick reference: /public/docs/api-quick-reference.md in repo

The SCP era is over for blog figures. Use the API.
